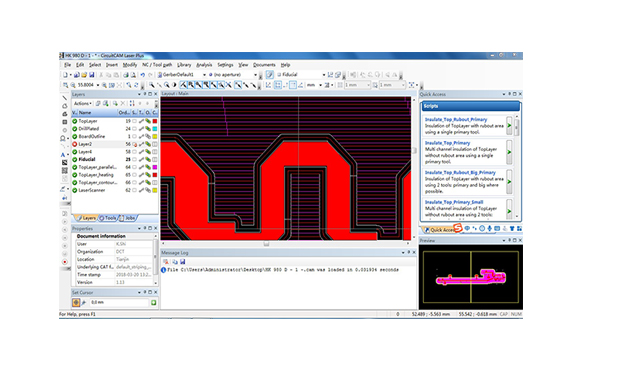

CircuitCAM 7 LaserPlus

CircuitCAM 7 Laser Plus is suitable for PCB direct laser structure equipment. The core of software is unique Striping & Stripping algorithm of DCT’s Direct Laser Circuit Technology, namely the stripping and striping technology, S&S for short.

CircuitCAM7 Laser Plus generates laser path, which removes copper piece by piece in blocks, results high quality and high-speed production of conductive pattern.With S&S technology, The width of small blocks can be set to optimize the processing path. The laser route is short, with ensured high processing efficiency, less residual copper after processing, and no burning of wire edges. CircuitCAM 7 Laser Plus generates processing data that gives power to more than just dedicated devices, which can also produce substantial improvements in processing performance even for conventional laser equipment.

Features

Perfect function

Innovative algorithm optimized tool path multiplies the processing quality and speed

Easy to use

Easy to use, intuitive and clear interface, smooth data processing

Core of the value

Technique and know-how from experts integrated, precedents are available for common, special and difficult task

High compatibility

Major industry formats compatible, templates according to CAD/EDA station, convert design to tool path easily

Worry-free service

Worry-free service, independent help menu and manual, reliable support and upgrade ensures continuous improvement

Product parameters

Category	Feature	Basic	Standard	Pro	Laser Plus
CAM File
	Open	?	?	?	?
	Save	?	?	?	?
Import
	Gerber	?	?	?	?
	GerberX (See Below On Cutouts)	?	?	?	?
	Excellon/Sieb&Meyer	?	?	?	?
	LMD	?	?	?	?
	HP-GL	?	?	?	?
	DXF	?	?	?	?
	Barco DPF	?	?	?	?
	ODB++	?	?	?	?
Export
	G-Code	?	?	?	?
	Gerber	?	?	?	?
	GerberX	?	?	?	?
	Excellon	?	?	?	?
	LMD	?	?	?	?
	HP-GL	?	?	?	?
	HP-GL With Pen Width	?	?	?	?
	DXF	?	?	?	?
	Barco DPF	?	?	?	?
	PostScript	?	?	?	?
	List of Sub-Layout Instances			?	?
Special
	DataMatrix	?	?	?	?
	PCB-DRC	?	?	?	?
	Stencil DRC			?	?
Editing
	Editing of Primitives and Flashes	?	?	?	?
	Multi level Undo/Redo	?	?	?	?
	CSG (Set Operations)		?	?	?
	Polygon with Cutouts (Also for Import)		?	?	?
	Convert to Flash & Comparison		?	?	?
	Draw to Flash		?	?	?
	Denest Flash		?	?	?
	Create Outline		?	?	?
	Step&Repeat		?	?	?
	Create Bounding Shape		?	?	?
	Shape Manipulations		?	?	?
	Sub-Layout Instances			?	?
	Geometry Manipulations Center (GMC)			?	?
Tool Path
	Insulation Milling	?	?	?	?
	Contour Routing	?	?	?	?
	Base Material & Fixture	?	?	?	?
	Tool Compensation	?	?	?	?
	Swap & Sequence	?	?	?	?
	Sorting / Path Optimization	?	?	?	?
	NC Mode	?	?	?	?
	Configurable Toolpath Engine (Universal / Laser / Milling / Drilling)		?	?	?
	Laser Fill		?	?	?
	Laser Insulate		?	?	?
	Scanner Fields		?	?	?
	SMT Stencil Calculation			?	?
	SMT Stencil Frame Generator			?	?
	Striping & Stripping				?
Library
	Create Package			?	?
	Create Footprint			?	?
	Package Recognition			?	?
	GMC Exchange			?	?
	Apply Footprints			?	?
	Import Library			?	?
